Dimensions
2230 mmW x 700 mmD x 840 mmH
Key Specifications
Door Count
4
Door Type
Glass Door
Capacity Net Litres
368.0
Temp Min C
0.0
Temp Max C
6.0
Unit Type
Underbench
Description
Model: AXR.UCGN.4G
Key features
- Monoblock refrigeration system
- Adjustable digital temperature controller (0°C - 6°C)
- Fan forced ducted cooling
- Protective coating on refrigeration coil
- R290 Hydrocarbon refrigerant
- LED lighting
- Stainless steel worktop (840mm finish height)
- 1/1GN shelf configuration with adjustable runners (2 shelves per door)
- 60mm CFC free polyurethane insulation
- Double glazed heated glass door; self-closing, lockable doors
- Removable filter for easy cleaning
- Lockable castors designed for heavy-duty use
Specifications
- Net capacity: 368 Litres
- Operation: 0°C - 6°C
- Dimensions (W x D x H): 2230 x 700 x 840 mm
- Weight: 164kg
- Energy consumption: 5.46kWh/24hr
- Total connected load: 0.43kW
- Electrical connection: 1Ø+N+E 230VAC / 50Hz; 10A plug & lead
- Max ambient: 38°C
- Climate class: 4M1
Warranty: 24 Months on-site parts and labour warranty
Specifications
Capacity Net Litres
368.0
Door Count
4
Door Type
Glass Door
Depth
700 mm
Height
840 mm
Width
2230 mm
Power Consumption
Energy Consumption 5.46kWh/24hr; Total Connected Load 0.43kW
Power Requirement
1Ø+N+E 230VAC / 50Hz; 10A plug & lead
Power Source
Electric
Temp Max C
6.0
Temp Min C
0.0
Unit Type
Underbench
Manufacturer Origin
China
Electricity Consumption
0.37kW
Warranty
Manufactured warranty period
24 Months
Onsite or BTB
on-site parts and labour
Brochures

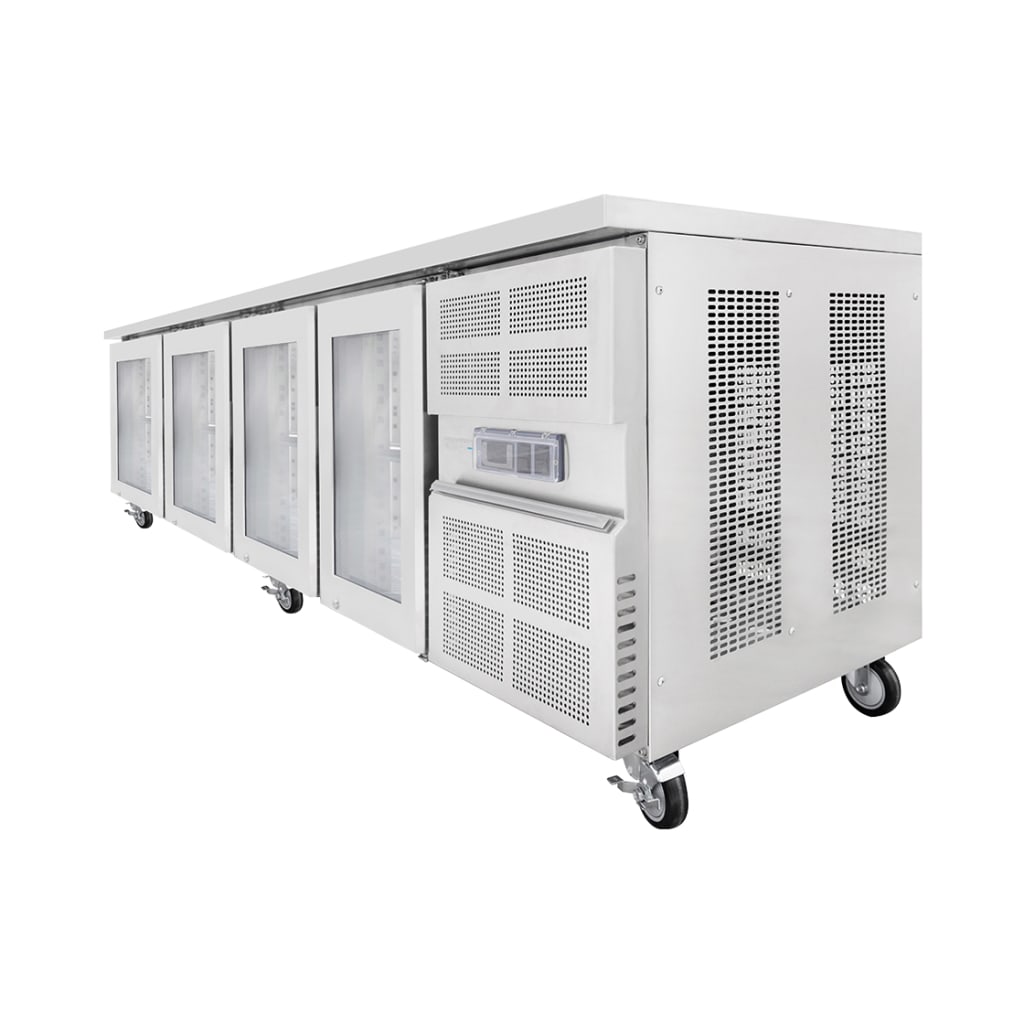

Airex AXR.UCGN.4G ActiveCore Undercounter Fridge 4 Glass Doors
Airex AXR.UCGN.4G refrigerated undercounter underbench fridge with 4 glass doors and 1/1GN storage, 2230mm wide.
- Accurate holding: adjustable digital temperature controller (0°C6 C).
- Uniform cooling: fan forced ducted airflow with a monoblock refrigeration system for easier servicing.
- Clear display: double glazed heated glass doors minimise condensation; self-closing and lockable.
- Flexible GN layout: 1/1GN shelves with adjustable runners (2 shelves per door).
- Easy upkeep: removable filter and an innovative internal design for efficient, hygienic cleaning.
Includes LED lighting, stainless steel worktop (840mm finish height) and lockable castors designed for heavy-duty use. Optional 900mm working height model available.
