Quick Specifications
Dimensions (mm)
W1107 x D700 x H970
Power Source
Electric
Power Requirement
415V 50Hz three phase (cable without plug); Fuse: 32A
Details

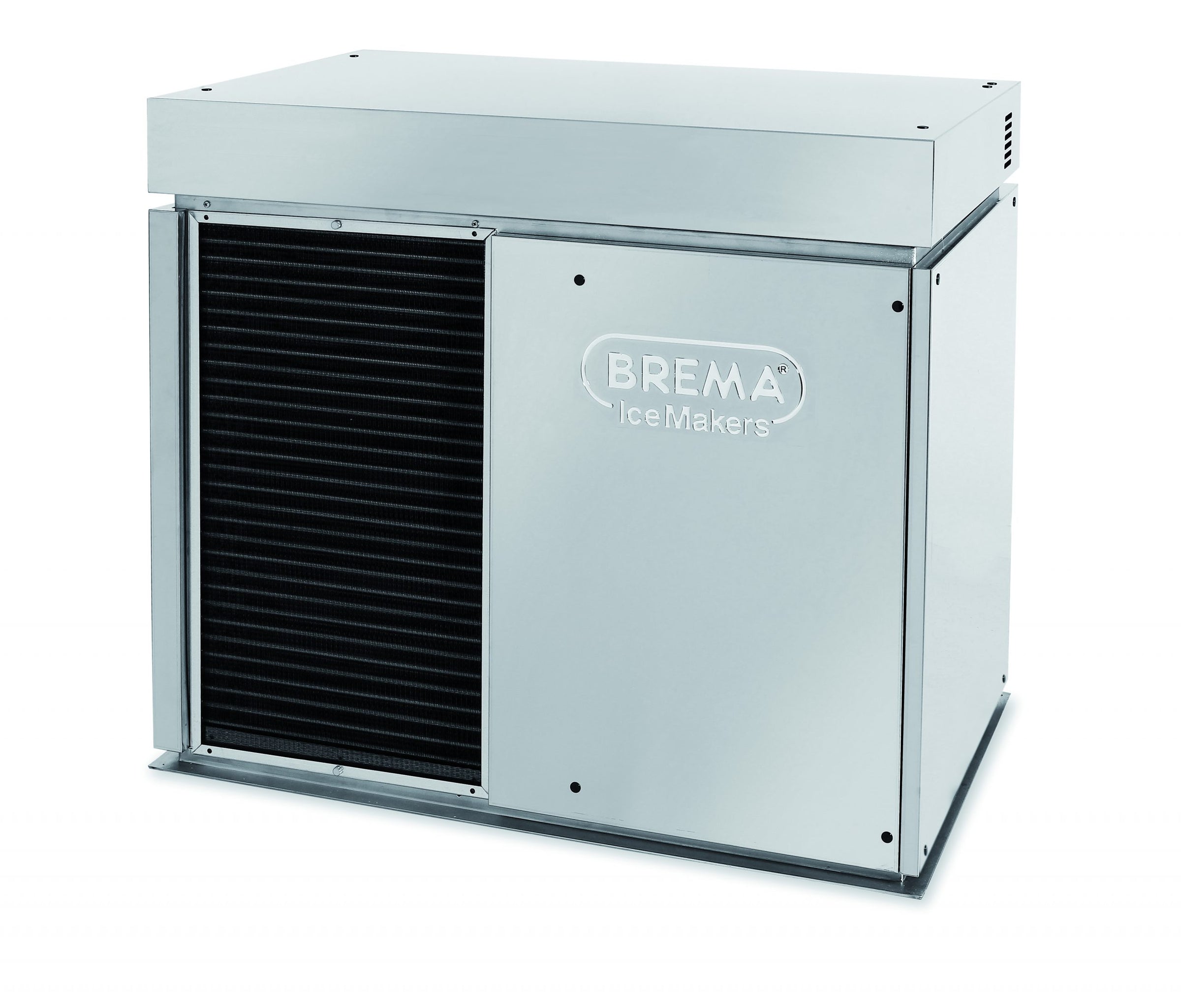

Brema M1500A modular ice flake machine (MUSTER series) producing flat ice flakes.
- Production: 1500kg per 24 hour (rated at 21°C air and 15°C water)
- Ice type: flat ice flakes (Sub-zero flake)
- Ice temperature: between –5°C and –10°C
- Cooling system: Air
- Refrigerant: R452A
- Construction: hospital grade stainless steel outer; powerful cylindrical evaporator and ice scraper system; electromechanical operation
- Dimensions (W x D x H): 1107 x 700 x 970 mm
- Weight: 306kg
- Power supply: 415V 50Hz three phase (cable without plug); Energy consumption: 6000W; Fuse: 32A
- Connections: 3/4” water inlet; 24mm water outlet; electrical connection
- Standard accessories: water inlet hose, drainage hose, external water filter, pressure limiting valve
- BIN550 V DS, DRB100, DRB500, DRB1200
Warranty Details
Manufactures warranty period
3 YEARS PARTS & LABOUR
