Key Specifications

Dimensions

576 mmW x 604 mmD x 820 mmH

Basket Count

2

Description

The single-button control uses colour-coded machine status to keep operation clear. Wash selection includes 60, 120 and 180-second cycles, plus a Hygiene programme used with Hygiene-Tab INTENSIV to remove calcium carbonate and other deposits from the wash chamber. The usable chamber/loading height is 360 mm, supporting large plates and other suitable items.

Double-skin construction around the door and wash chamber is designed to reduce operational noise and heat. Rotating top and bottom wash and rinse arms distribute water across the chamber, while the rinse pressure pump addresses fluctuating or low supply pressure and is intended to support consistent wash results. The machine is suitable for use with HOBART RO-S reverse-osmosis treatment.

A USB connection supports servicing by a HOBART technician. The supplied installation package includes a plate rack, cutlery basket, fill and drain hoses, chemical pumps, and a plug and lead. The product is designed and manufactured in Germany by HOBART and is WATERMARK approved. Thermostop maintains required temperatures; cold water or a 240 V connection can extend actual cycle times. For machine protection, water hardness should not exceed 3 degrees dH; above that level the source recommends integrated softening or HYDROLINE PROTECT external softening.

Specifications

Arm Type

Rotating top and bottom wash and rinse arms

Basket Count

2

Basket Size Or Portion Type

1 plate rack (500 x 500 mm) and 1 cutlery basket

Chamber Type

Double-skin door and wash chamber

Control Type

Single-button control with colour-coded machine status

Drain Type

Drain hose: 2,000 mm, ID20/OD25. With RO-S: independent gravity waste to tundish.

Depth

604 mm

Height

820 mm

Width

576 mm

Phase

Single phase

Power Consumption

Tank heating: 1.8 kW
Booster loading (standard): 1.8 kW
Total loading (standard): 2.2 kW | 15 A
Wash pump: 0.34 kW | 180 L/min

Power Requirement

240 V / 50 Hz; 15 A plug and lead; 2,000 mm power cord

Tank Capacity L

25

Water L Per Cycle

2.0

Weight Crated Kg

69 kg

Weight Uncrated Kg

55 kg

Manufacturer Origin

Germany; designed and manufactured by HOBART

Connectivity USB

Yes

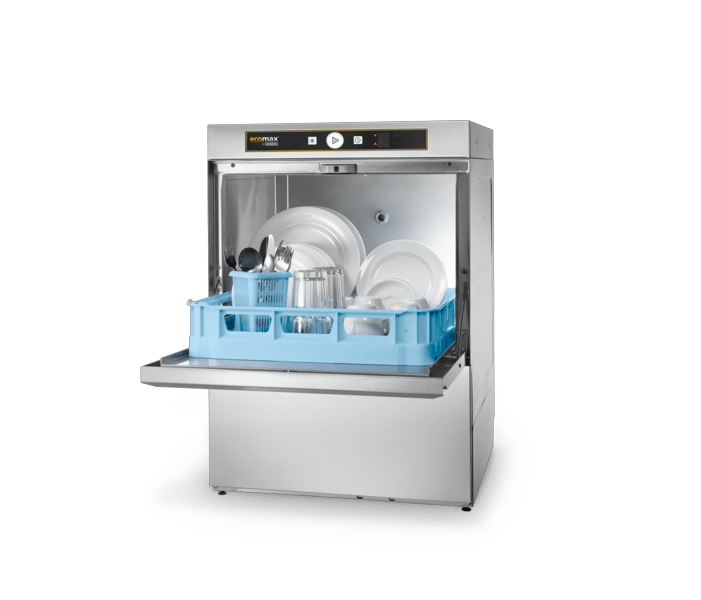

HOBART ECOMAX504-C Undercounter Dish & Glasswasher

HOBART

SKU: ECOMAX504-C

The HOBART ECOMAX504-C is an undercounter dish and glasswasher designed for straightforward washing of plates, glassware and other suitable items. Its easy controls, even wash-chamber coverage and systems intended to support consistent results make operation simple, while its compact undercounter format and supplied installation components help it fit into a practical wash-up workflow.

RRP $8,370.00

BUY FOR

$7,114.50

EX GST

Save $1,255.50 off RRP
