Dimensions
Key Specifications
704W x 506D x 1270H
Capacity Net Litres
8.0
Description
Up to 100kg of ice per day
Rated to 40C ambient temperature (tropical conditions)
New intelligent control circuit dedicated to saving power and water consumption
Micro computer controller controls ice making process to work at peak performance in any conditions
Inbuilt safety features - freeze cycle back up timer, defrost back up, low voltage & high amp protector
New 7 segment operational display panel for ease of use
Unique closed cell water circuit for ulitmate contamination protection
Durable stainless steel exterior
Easily accessible and cleanable air filters reduce costly callouts
Exceptionally hard crystal clear cubes that melt slowly
Auto rinse and flush cycle
3 year parts and labour warranty on entire unit, 5 year (parts only) on compressor & air cooled condenser coil
Cooling Air
Refrigerant R134a
Water temp 5-35C
Water Pressure 50-800 kPa
Ice Production per Cycle 1.15kg/190 pcs
Freeze Cycle 19 mins
Max Storage Capacity - 50 kg
Bin Control 28kg
Rated to 40C ambient temperature (tropical conditions)
New intelligent control circuit dedicated to saving power and water consumption
Micro computer controller controls ice making process to work at peak performance in any conditions
Inbuilt safety features - freeze cycle back up timer, defrost back up, low voltage & high amp protector
New 7 segment operational display panel for ease of use
Unique closed cell water circuit for ulitmate contamination protection
Durable stainless steel exterior
Easily accessible and cleanable air filters reduce costly callouts
Exceptionally hard crystal clear cubes that melt slowly
Auto rinse and flush cycle
3 year parts and labour warranty on entire unit, 5 year (parts only) on compressor & air cooled condenser coil
Cooling Air
Refrigerant R134a
Water temp 5-35C
Water Pressure 50-800 kPa
Ice Production per Cycle 1.15kg/190 pcs
Freeze Cycle 19 mins
Max Storage Capacity - 50 kg
Bin Control 28kg
Specifications
Product Dimensions
704x506x1270
Power Source
Electric
Capacity (Litres)
8.0
Warranty
Manufactured warranty period
3 Years Parts And Labour On The Entire Unit<Br/>5 Years Parts And Labour On The Evaporator<Br/>5 Years (Parts Only) On Compressor And Air Cooled Condenser Coil
Brochures

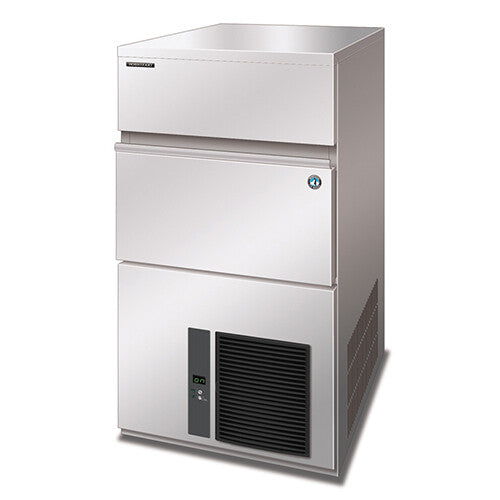

HOSHIZAKI: Cube Ice Machine IM series -IM-130NE-21
Power: 10 A, 220-240V/ 50Hz
Ice Production per 24 Hours:
Air temp: 10C Water temp: 10C 104kg
Air temp: 21C Water temp: 15C 95kg
Air temp: 32C Water temp: 21C 82kg
Ice Production per 24 Hours:
Air temp: 10C Water temp: 10C 104kg
Air temp: 21C Water temp: 15C 95kg
Air temp: 32C Water temp: 21C 82kg
