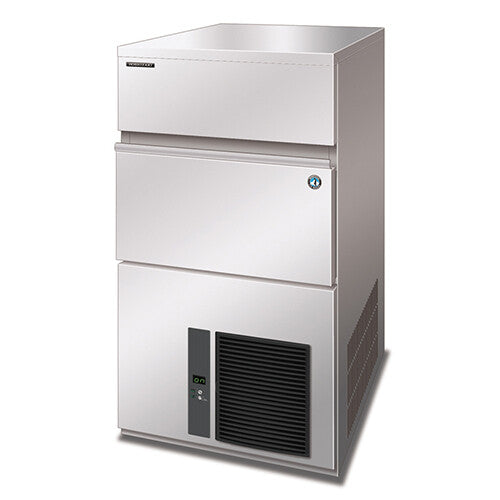

HOSHIZAKI: Cube Ice Machine IM series -IM-130NE-28

HoshizakiSKU: IM-130NE-28

Buy Outright:
Sale price$5,439.50 Regular price$8,600.00
$9.75per day EX-GST Start Application
Print as PDF

Key Specification

Dimensions: 704 x 506 x 1270 mm

Quick Description

Power: 10 A, 220-240V/ 50Hz
Ice Production per 24 Hours:
Air temp: 10C Water temp: 10C 104kg
Air temp: 21C Water temp: 15C 100kg
Air temp: 32C Water temp: 21C 88kg

More Information

Up to 100kg of ice per day
Rated to 40C ambient temperature (tropical conditions)
New intelligent control circuit dedicated to saving power and water consumption
Micro computer controller controls ice making process to work at peak performance in any conditions
Inbuilt safety features - freeze cycle back up timer, defrost back up, low voltage & high amp protector
New 7 segment operational display panel for ease of use
Unique closed cell water circuit for ulitmate contamination protection
Durable stainless steel exterior
Easily accessible and cleanable air filters reduce costly callouts
Exceptionally hard crystal clear cubes that melt slowly
Auto rinse and flush cycle
3 year parts and labour warranty on entire unit, 5 year (parts only) on compressor & air cooled condenser coil
Cooling Air
Refrigerant R404a
Water temp 5-35C
Water Pressure 50-800 kPa
Ice Production per Cycle 1.8kg/80 pcs
Freeze Cycle 22 mins
Max Storage Capacity - 50 kg
Bin Control 28kg

Estimate shipping

Quick Specifications

Dimension WxDxH (mm)
704x506x1270

Warranty

Extended warranty available
No
Manufactures warranty period
3 Years Parts And Labour On The Entire Unit
5 Years Parts And Labour On The Evaporator
5 Years (Parts Only) On Compressor And Air Cooled Condenser Coil
Onsite or back to base warranty
Onsite Warranty
Dimension WxDxH (mm)
704x506x1270
