Dimensions
633 mmW x 511 mmD x 780 mmH
Key Specifications
Unit Type
Counter Fit-In
Ice Type
Cube
Ice Kg 24h
32.0
Description
Up to 35kg of ice per day
Rated to 40C ambient temperature (tropical conditions)
New intelligent control circuit dedicated to saving power and water consumption
Micro computer controller controls ice making process to work at peak performance in any conditions
Inbuilt safety features - freeze cycle back up timer, defrost back up, low voltage & high amp protector
New 7 segment operational display panel for ease of use
Unique closed cell water circuit for ulitmate contamination protection
Durable stainless steel exterior
Easily accessible and cleanable air filters reduce costly callouts
Exceptionally hard crystal clear cubes that melt slowly
Auto rinse and flush cycle
3 year parts and labour warranty on entire unit, 5 year (parts only) on compressor & air cooled condenser coil
Cooling Air
Refrigerant R134a
Water temp 5-35C
Water Pressure 50-800 kPa
Ice Production per Cycle 0.55kg/42 pcs
Freeze Cycle 22 mins
Max Storage Capacity - 15 kg
Bin Control 8kg
Rated to 40C ambient temperature (tropical conditions)
New intelligent control circuit dedicated to saving power and water consumption
Micro computer controller controls ice making process to work at peak performance in any conditions
Inbuilt safety features - freeze cycle back up timer, defrost back up, low voltage & high amp protector
New 7 segment operational display panel for ease of use
Unique closed cell water circuit for ulitmate contamination protection
Durable stainless steel exterior
Easily accessible and cleanable air filters reduce costly callouts
Exceptionally hard crystal clear cubes that melt slowly
Auto rinse and flush cycle
3 year parts and labour warranty on entire unit, 5 year (parts only) on compressor & air cooled condenser coil
Cooling Air
Refrigerant R134a
Water temp 5-35C
Water Pressure 50-800 kPa
Ice Production per Cycle 0.55kg/42 pcs
Freeze Cycle 22 mins
Max Storage Capacity - 15 kg
Bin Control 8kg
Specifications
Bin Capacity Kg
15.0
Ice Kg 24h
32.0
Ice Type
Cube
Depth
511 mm
Height
780 mm
Width
633 mm
Phase
1 Phase
Power Consumption
Rated motor: 330W (power factor: 57%)
Power Kw
0.33
Power Requirement
1 PHASE 220-240V 50Hz / 10amp Plug
Power Source
Electric
Unit Type
Counter Fit-In
Weight Crated Kg
56 kg
Weight Uncrated Kg
48 kg
Warranty
Manufactured warranty period
3 Years Parts And Labour On The Entire Unit<Br/>5 Years Parts And Labour On The Evaporator<Br/>5 Years (Parts Only) On Compressor And Air Cooled Condenser Coil
Brochures

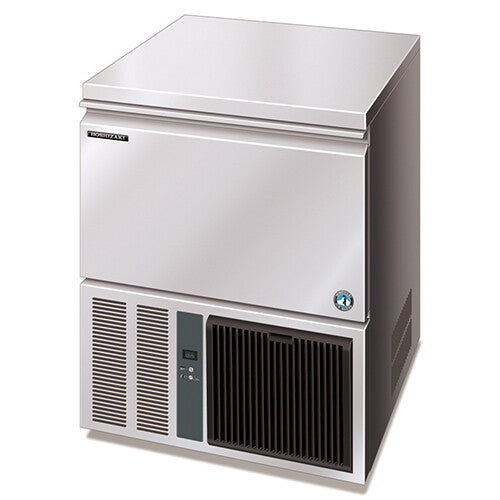

Hoshizaki IM-45CNE-25 Counter Fit-In Cube Ice Maker 32kg
The Hoshizaki IM-45CNE-25 is a self-contained, counter fit-in cube ice maker with production of approximately 32 kg per 24 hours at 21°C air and 15°C water conditions.
Key Features
- Intelligent control circuit designed to save power and water consumption
- Freeze-cycle and defrost back-up timers, plus low-voltage and high-amperage protection
- Seven-segment operational display
- Closed-cell water circuit for contamination protection
- Stainless-steel exterior
- Accessible, cleanable air filters
- Auto rinse and flush cycle
Specifications
- Production capacity: approx. 32 kg/24 hrs at 21°C air and 15°C water; approx. 27 kg/24 hrs at 32°C air and 21°C water
- Maximum storage capacity: approx. 15 kg (bin control setting approx. 8 kg)
- Freeze cycle time: approx. 22 minutes
- Ice production per cycle: approx. 0.55 kg / 42 pieces
- Dimensions: 633 mm (W) x 511 mm (D) x 780 mm (H), including 90-125 mm legs
- Net/gross weight: 48/56 kg
- Power supply: 1 phase, 220-240 V, 50 Hz, 10 A plug
- Rated motor: 330 W
- Cooling: air
- Refrigeration system: forced air circulation
- Refrigerant charge: R134a / 160 g
Options and Accessories
- Adjustable legs
