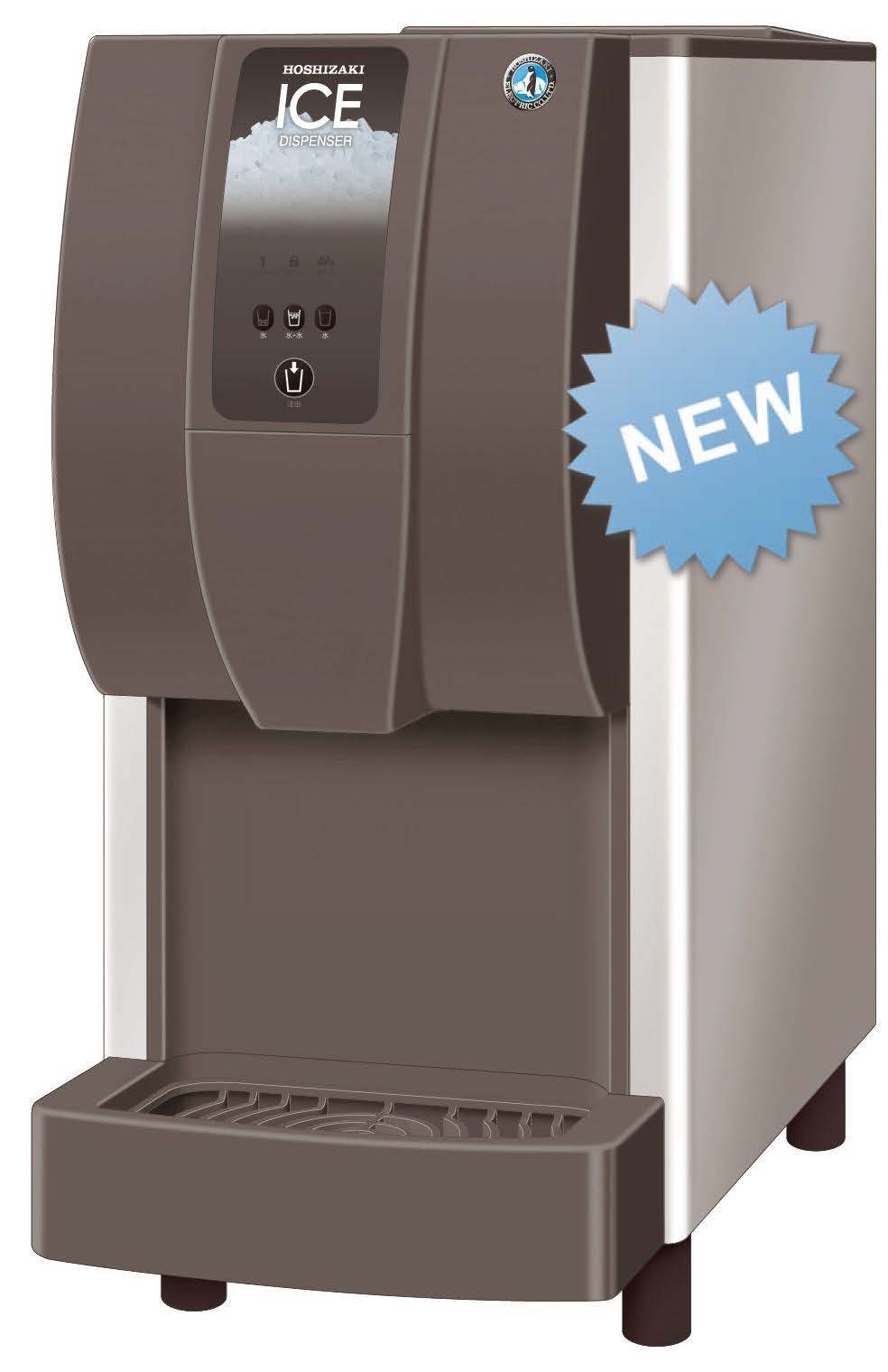

The Hoshizaki DCM-60KE-P-HC is a self-contained cubelet ice and water dispenser designed to combine production, protected storage and dispensing in one unit. Push-button selection provides ice, water or a combination of both, while portion control is intended to manage ice use and reduce waste. The sheet describes a hygienic arrangement that prevents air and water from contacting stored ice, together with a compact footprint and plug-and-play installation approach.

The cabinet measures 350 mm wide, 585 mm deep and 695 mm high, with net and packed weights of 46 kg and 55 kg respectively. It is air-cooled, uses R290 refrigerant and requires a single-phase 220–240 V, 50 Hz supply with a 10 A plug. Maximum storage capacity is approximately 1.9 kg. The other stated production points are approximately 50 kg at 21°C air and 15°C water and approximately 38 kg at 32°C air and 21°C water. The listed GEMS number is AIM0024.

Installation guidance calls for periodic condenser cleaning, avoiding shared multi-plug power boards, managing room humidity with ventilation or air conditioning, and using a compatible water filter to reduce scale and sediment complications. Refer to the manufacturer’s manual for complete installation and maintenance requirements.
