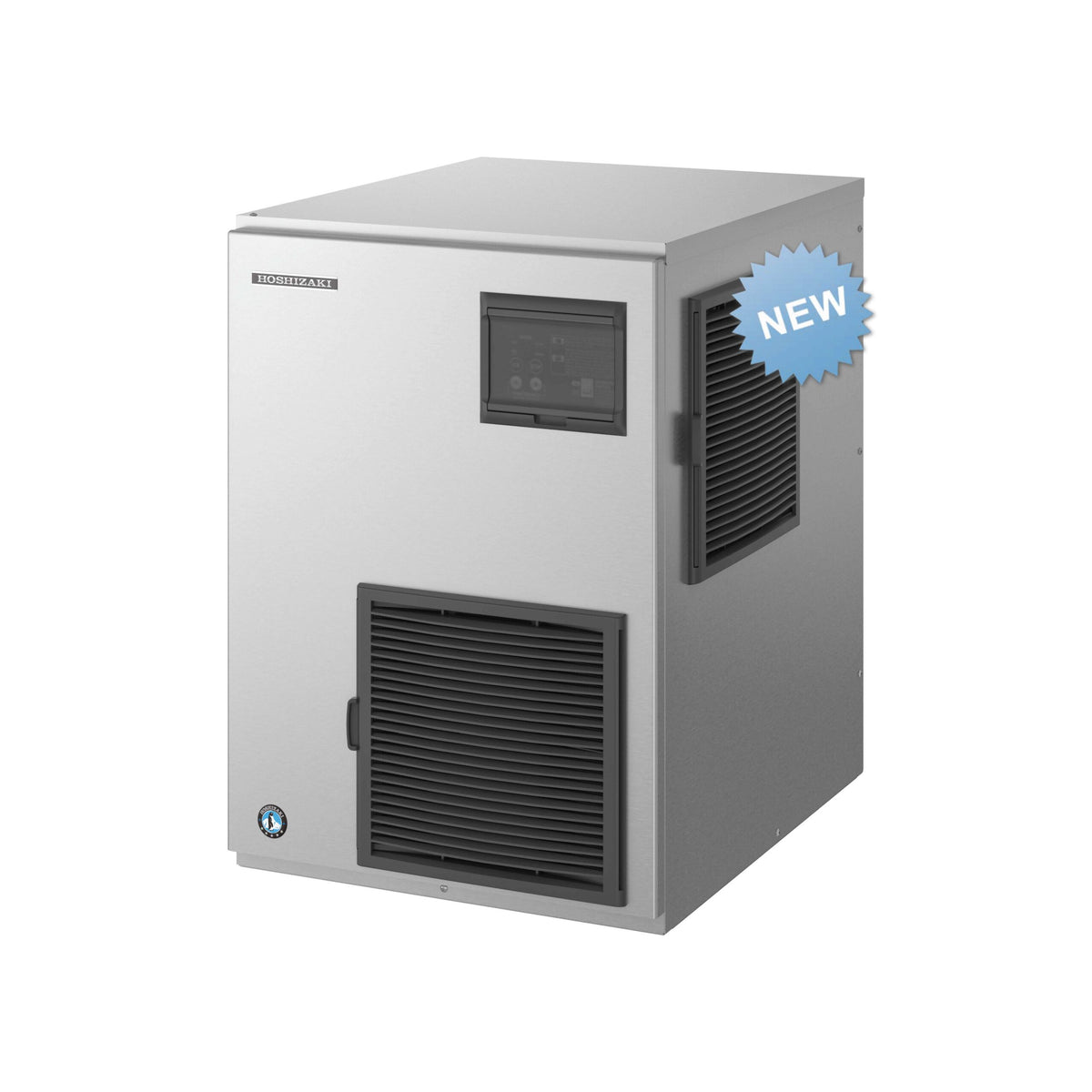

The Hoshizaki FM-480AKE-HC-SB is a modular flake ice maker in a modular format for use with a compatible storage bin. The source rates output at approximately 450 kg per 24 hours using 10°C air and 10°C water. Source-listed operating features include closed water circuit, cleanable air filter and magnetic DC water-pump system.

The cabinet measures 560 mm wide, 700 mm deep and 780 mm high, with net and packed weights of 92 kg and 99 kg respectively. It is air-cooled, uses R290 refrigerant and requires a single-phase 220–240 V, 50 Hz supply with a 10 A plug. The other stated production points are approximately 400 kg at 21°C air and 15°C water and approximately 340 kg at 32°C air and 21°C water. The listed GEMS number is AIM0045.

Installation guidance calls for periodic condenser cleaning, avoiding shared multi-plug power boards, managing room humidity with ventilation or air conditioning, and using a compatible water filter to reduce scale and sediment complications. Refer to the manufacturer’s manual for complete installation and maintenance requirements.
