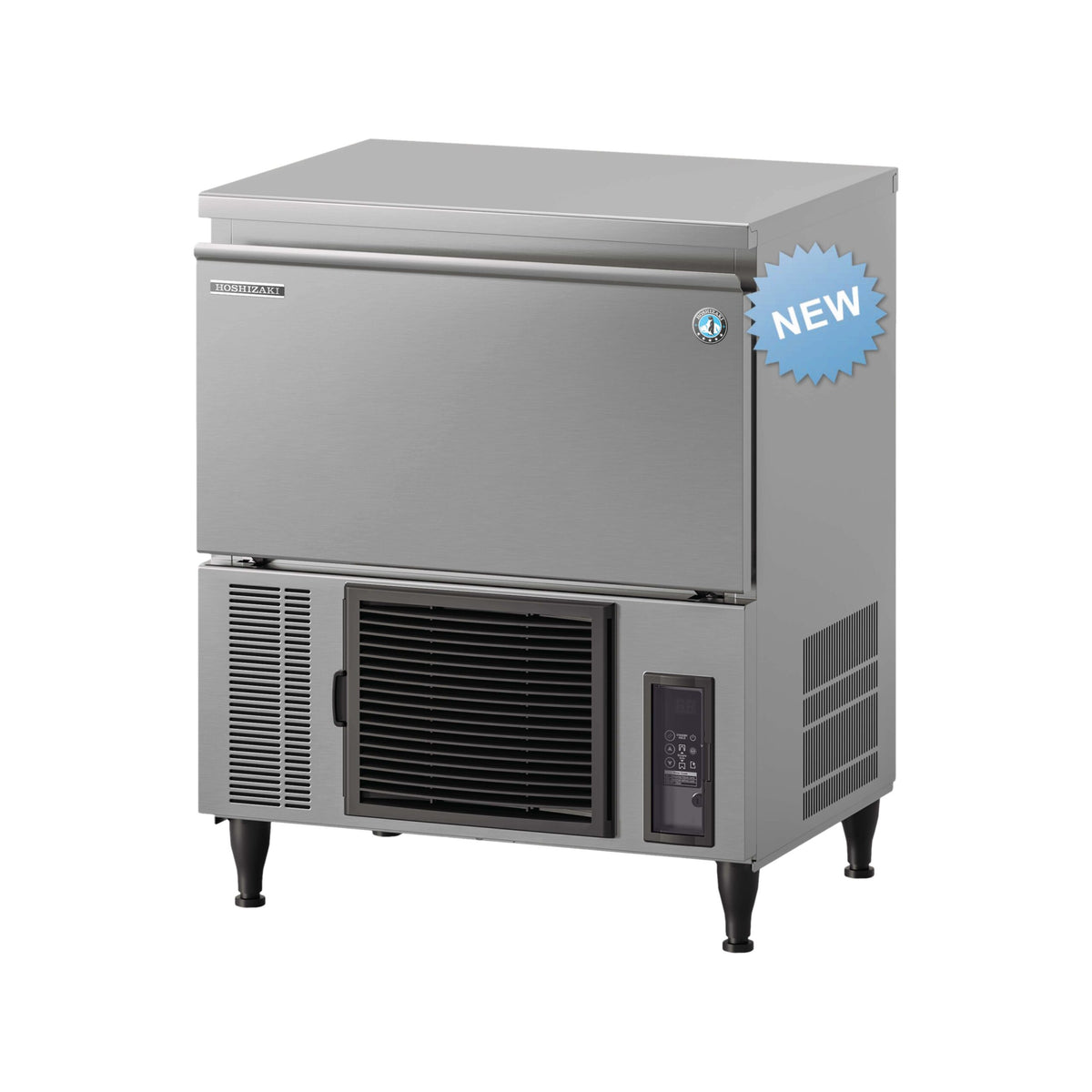

The IM-45CPE-25-F is a self-contained FlexiCube ice maker built around an integrated internal drain pump. The pump arrangement allows placement up to 10 m from the drain point and up to 1.5 m above it when used at the maximum stated distance. It forms compact, dry, tasteless and slow-melting S-25 cubes, each approximately 25 x 25 x 23 mm and 13 g. Automatic wash restart, water-circuit and condenser-cleaning notifications, a variable-speed magnetic DC pump motor, high-grade stainless-steel construction, a removable door gasket and an easy-clean air filter support routine operation and maintenance.

The maximum production rating uses 10°C air and 10°C water conditions. The sheet also states approximately 34 kg per 24 hours at 21°C air and 15°C water, and 26 kg at 32°C air and 21°C water. The bin-control setting is approximately 8 kg. The unit is air-cooled and uses R290 refrigerant. Operating limits are 1-40°C ambient air, 5-35°C supply water and 0.07-0.8 MPa water pressure. Water use is approximately 0.20, 0.11 and 0.09 m³ per 24 hours under the three respective test conditions. Heat rejection is 710 W at 32°C air and 21°C water. An installation kit and scoop are included. GEMS number AIM0019.

Installation guidance calls for periodic condenser cleaning, avoiding shared multi-plug power boards, using room ventilation or air conditioning to reduce humidity, and using a compatible water filter to prevent scale and sediment complications. Refer to the manufacturer’s manual for full installation and maintenance requirements.
