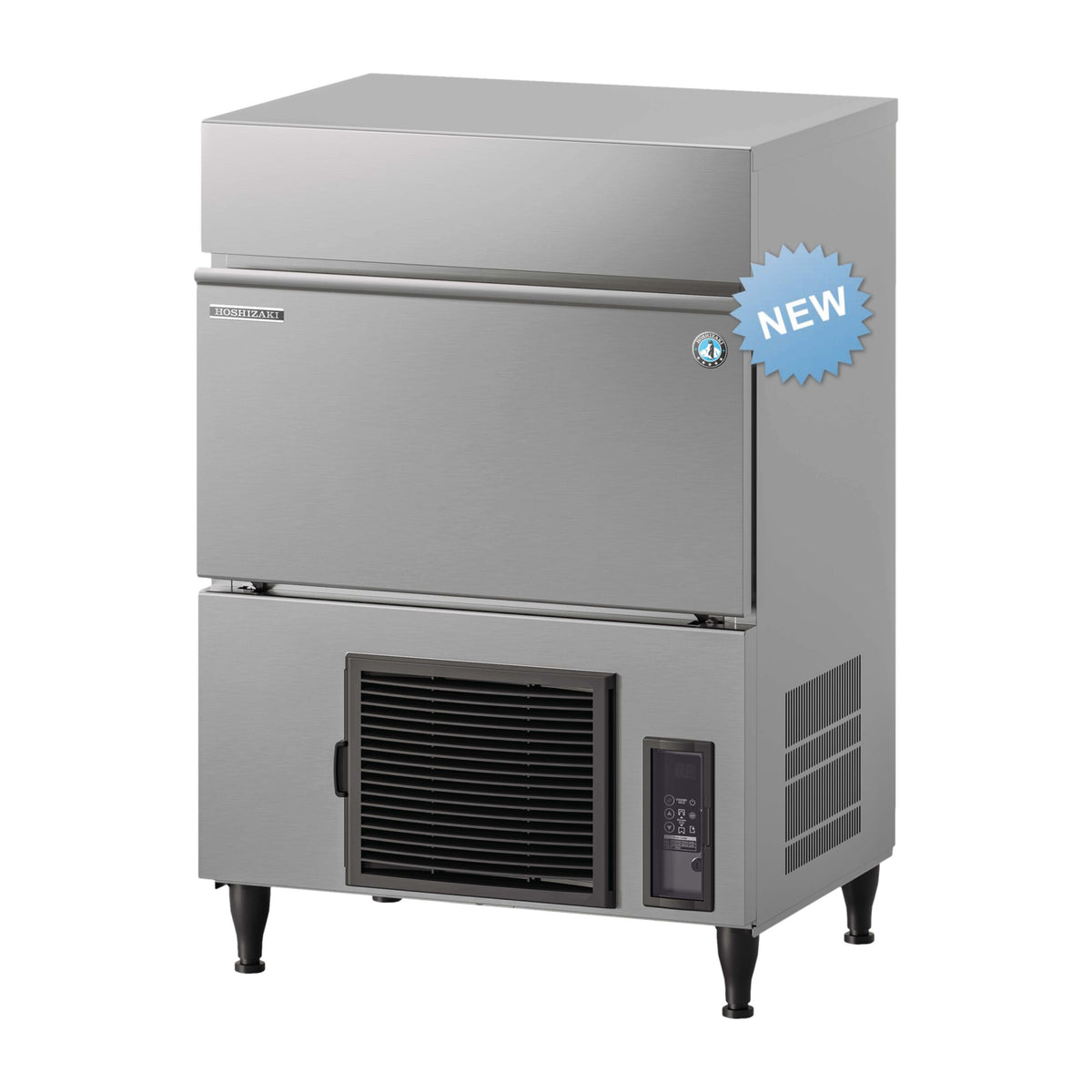

The Hoshizaki IM-65PE-28-F is a self-contained cube ice maker in a self-contained format with integral storage. The source rates output at approximately 55 kg per 24 hours using 10°C air and 10°C water. Source-listed operating features include automated cleaning, easy-clean air filter, removable door gasket, stand-by/wash buttons, magnetic DC water-pump system and high-grade stainless-steel construction. An integrated internal drain pump allows flexible placement where the drain position or height would otherwise be restrictive; the sheet states a positioning radius up to 10 m and up to 1.5 m above the drain point at that maximum distance.

The cabinet measures 633 mm wide, 506 mm deep and 930 mm high, with net and packed weights of 49 kg and 59 kg respectively. It is air-cooled, uses R290 refrigerant and requires a single-phase 220–240 V, 50 Hz supply with a 10 A plug. Maximum storage capacity is approximately 26 kg. The other stated production points are approximately 48 kg at 21°C air and 15°C water and approximately 39 kg at 32°C air and 21°C water. The listed GEMS number is AIM0010.

Installation guidance calls for periodic condenser cleaning, avoiding shared multi-plug power boards, managing room humidity with ventilation or air conditioning, and using a compatible water filter to reduce scale and sediment complications. Refer to the manufacturer’s manual for complete installation and maintenance requirements.
