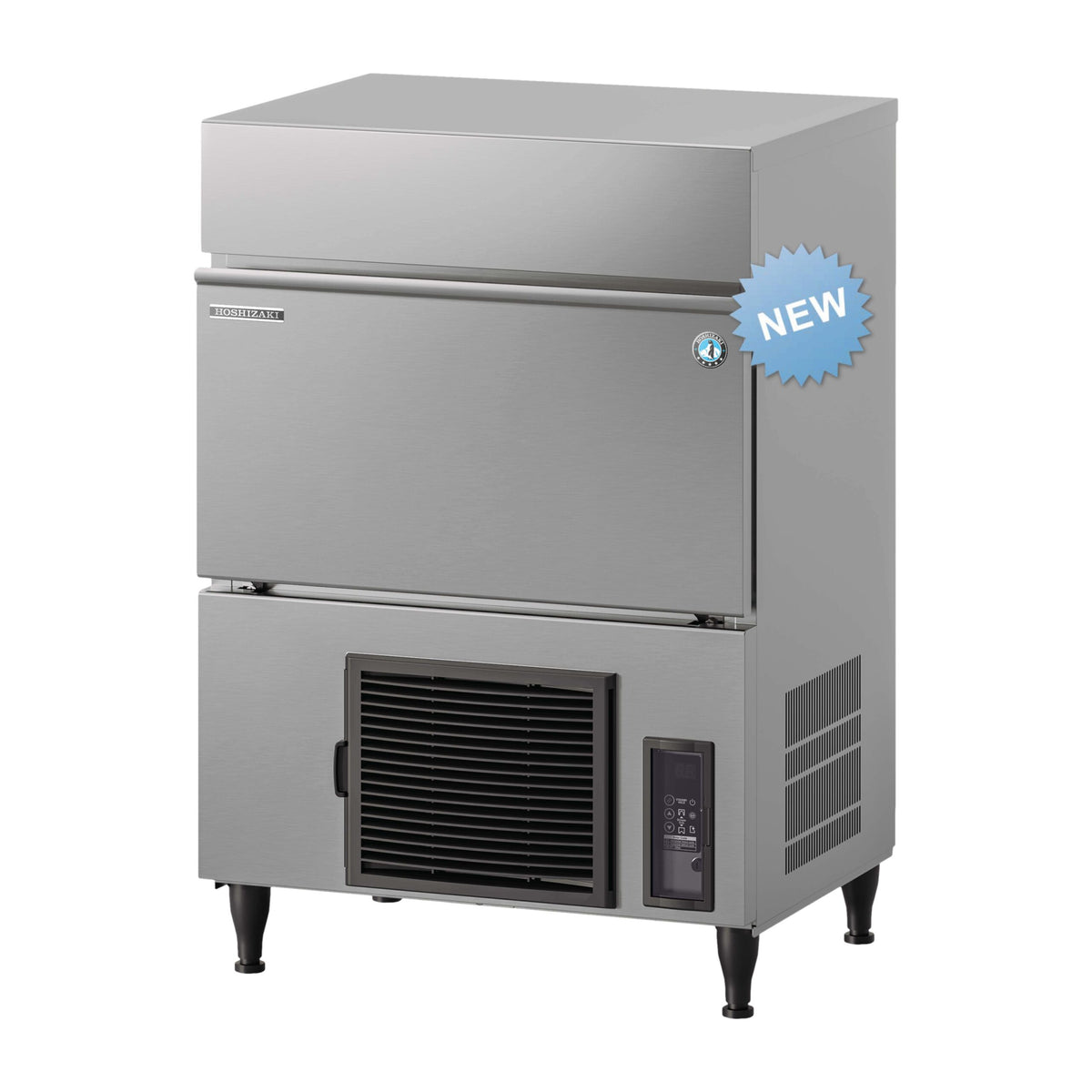

The Hoshizaki IM-65PE-LM is a self-contained cube xxl ice maker in a self-contained format with integral storage. The source rates output at approximately 42 kg per 24 hours using 10°C air and 10°C water. Source-listed operating features include automated cleaning, easy-clean air filter, removable door gasket, stand-by/wash buttons, magnetic DC water-pump system and high-grade stainless-steel construction.

The cabinet measures 633 mm wide, 506 mm deep and 950 mm high, with net and packed weights of 54 kg and 64 kg respectively. It is air-cooled, uses R290 refrigerant and requires a single-phase 220–240 V, 50 Hz supply with a 10 A plug. Maximum storage capacity is approximately 26 kg. The other stated production points are approximately 38 kg at 21°C air and 15°C water and approximately 31 kg at 32°C air and 21°C water. The listed GEMS number is AIM0008.

Installation guidance calls for periodic condenser cleaning, avoiding shared multi-plug power boards, managing room humidity with ventilation or air conditioning, and using a compatible water filter to reduce scale and sediment complications. Refer to the manufacturer’s manual for complete installation and maintenance requirements.
