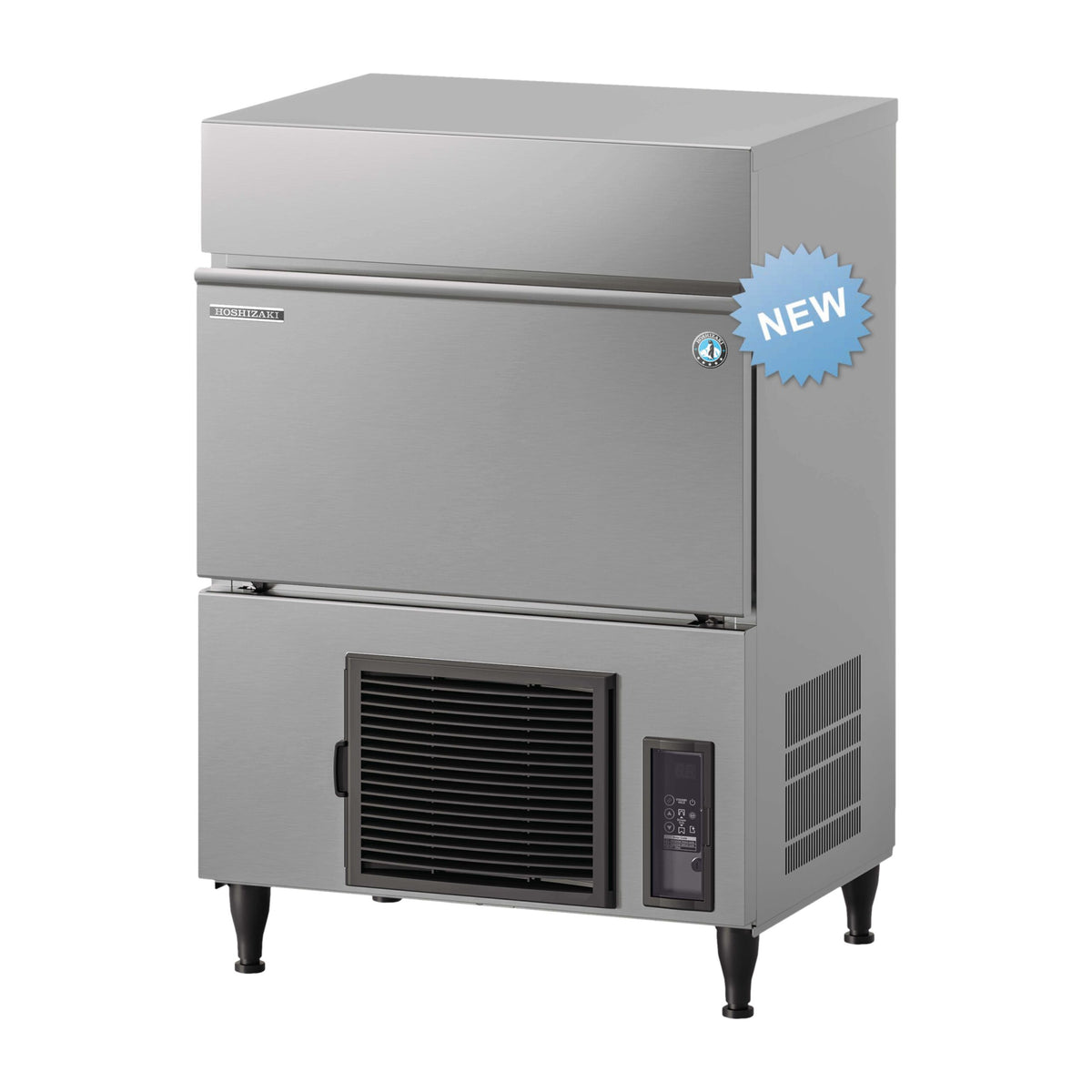

The Hoshizaki IM-65PE-Q is a self-contained ball ice maker in a self-contained format with integral storage. The source rates output at approximately 33 kg per 24 hours using 10°C air and 10°C water. Source-listed operating features include automated cleaning, easy-clean air filter, removable door gasket, stand-by/wash buttons, magnetic DC water-pump system and high-grade stainless-steel construction.

The cabinet measures 633 mm wide, 506 mm deep and 950 mm high, with net and packed weights of 52 kg and 62 kg respectively. It is air-cooled, uses R290 refrigerant and requires a single-phase 220–240 V, 50 Hz supply with a 10 A plug. Maximum storage capacity is approximately 17 kg. The other stated production points are approximately 28 kg at 21°C air and 15°C water and approximately 23 kg at 32°C air and 21°C water. The listed GEMS number is AIM0007.

Installation guidance calls for periodic condenser cleaning, avoiding shared multi-plug power boards, managing room humidity with ventilation or air conditioning, and using a compatible water filter to reduce scale and sediment complications. Refer to the manufacturer’s manual for complete installation and maintenance requirements.
