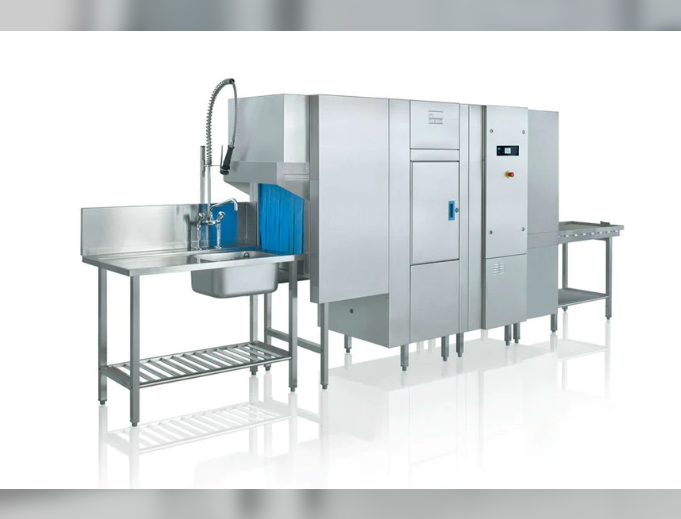

Meiko Upster KM 250 Rack Conveyor Dishwasher

Features:

• Pass Through Dishwasher
  • Outstanding warewashing performance & top-quality cleaning results in a compact package
  • Three choices of rack capacity
  • Intuitive & user friendly and easy to clean/maintain
  • Generous passing height (508mm) makes space to wash even bulky items
  • No extraction system required - machine makes best use of waste energy resources
  • Safety glass display panel at eye level - easy to keep hygienically clean
  • Bluetooth interface - modern innovative communication technology
  • Hinged doors in wash zone provide easy access to wash warms
  • Autotimer - saves water / energy / chemicals
  • System to reduce rinse aid use - reduces rinse aid costs by up to 70%
  • Stainless steel manifold wash systems with 9 wash arms & non-blocking wash nozzles
  • Stainless steel wash pump / impeller / ascending pipe
  • Stainless steel wash & rinse arms
  • Floor clearance 150mm - makes cleaning easier
  • Emergency stop located at ergonomic height
  • Thermally insulated door handles
  • Door monitoring switch - machine switches off when door is opened
  • Device to protect against pollution of potable water ling with pressure pump - maximum operating reliability & hygiene
  • Control cabinet on front of machine - positioned for fast & cost-effective servicing and maintenance
  • Double-walled construction & door insulation - minimises heat & noise emitted by the machine
  • Electrical connections (potential-free contacts) for on-site ventilation
  Specifications:
• - DEPTH: 2050mm

  - WIDTH: 795mm

  - HEIGHT: 1950mm

  - WEIGHT: 522kg

  - POWER TYPE: 3 Phase

• Rack capacity (DIN)	125 racks/h
  Rack capacity (min.)	190 racks/h
  Rack capacity (max.)	250 racks/h
  Rack dimension	500 x 500 mm mm
  Passing height	508 mm
  Passing width	510 mm
  Final rinse	260 l/h
  Total connected load	28 kW
  Consumption value	19,3 kW
  Machine length	2050 mm
