Dimensions
913 mmW x 1237 mmD x 1863 mmH
Key Specifications
Description
UNOX XV4093 belongs to the CHEFLUX™ MANUAL range. This electric convection oven with humidity accommodates 20 GN 2/1 trays. The unit has a left hinge and uses knob controls. AIR.Plus circulates hot air across the trays for more even baking. STEAM.Plus adds humidity during the cooking process. DRY.Plus removes excess humidity from the cooking chamber. The specified operating temperature range is 80 °C – 260 °C. The exact-model UNOX specification gives external dimensions of width 913 mm, depth 1237 mm, height 1863 mm. Its listed electrical supply is 380-415V 3N~. The listed electric power is 46,7 kW. The published weight is 285 kg. Tray spacing is 66 mm. Check the exact-model UNOX specification for the required site services and installation clearances before ordering.
Specifications
Control Type
Knob
Depth
1237 mm
Height
1863 mm
Width
913 mm
Phase
Three Phase
Power Consumption
Total power 46.7 kW
Power Kw
46.7
Power Requirement
Voltage 380-415 V; Phase ~3PH+N+PE; Frequency 50 / 60 Hz; Connection: Terminal board power supply; Required breaker size 80 A; Power cable requirements 5G x 16 mm^2; Plug NOT INCLUDED.
Power Source
Electric
Tray Count
20
Warranty
Warranty Contact
Unox S.p.A. Via Majorana 22 - 35010 Cadoneghe (PD) - Italy - Tel. +39 049 865 7511 - info@unox.com
Brochures

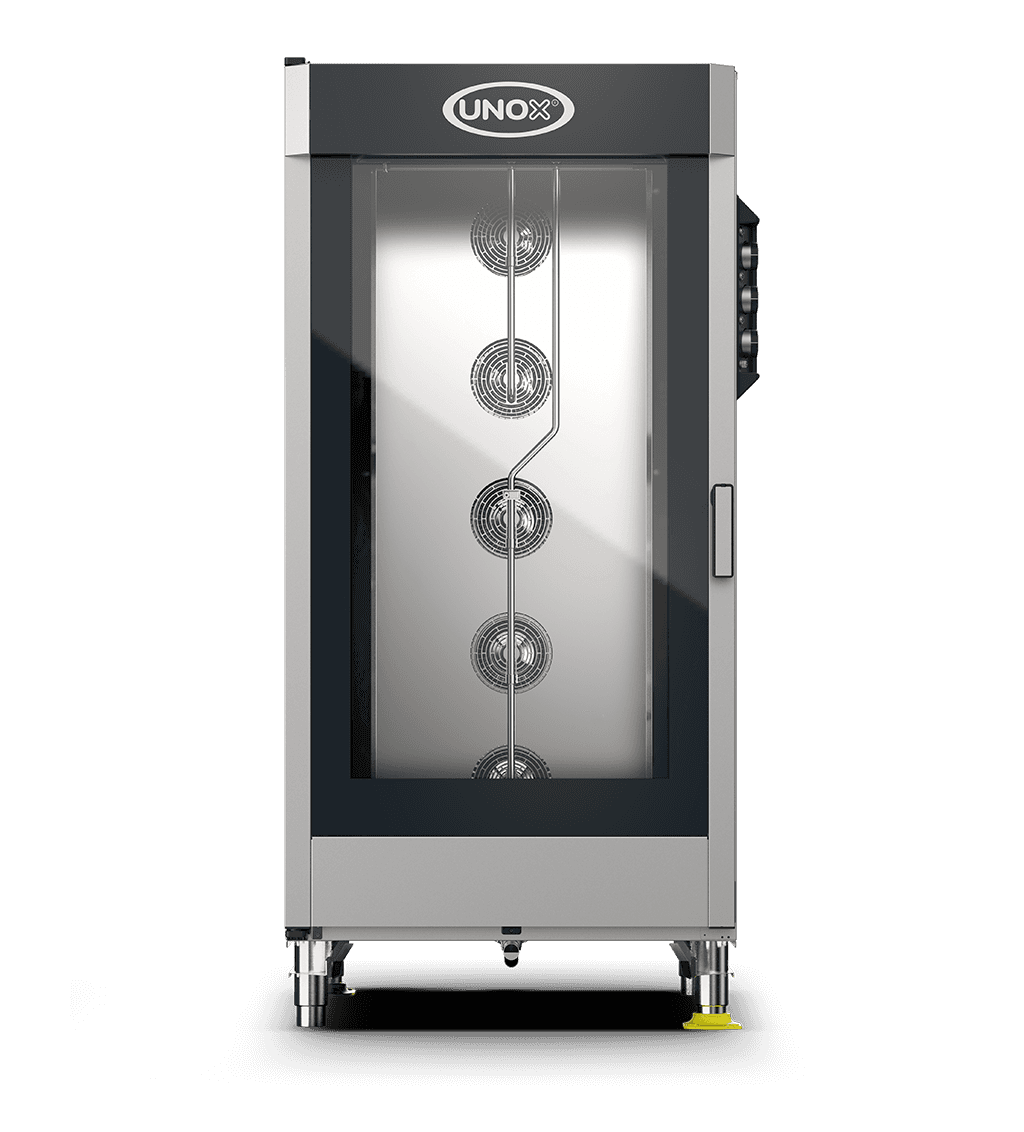

UNOX XV4093 CHEFLUX™ MANUAL Convection Oven With Humidity 20 GN 2/1 trays Electric Left Hinge
The UNOX XV4093 is an electric convection oven with humidity in the CHEFLUX™ MANUAL range. It holds 20 GN 2/1 trays. It has a left hinge. Its knob controls provide access to the cooking settings. AIR.Plus circulates hot air across the trays for more even baking. STEAM.Plus adds humidity during the cooking process.
RRP
$33,080.00
BUY FOR
$25,479.87
EX GSTSave $7,600.13 off RRP
