Dimensions
900 mmW x 805 mmD x 915 mmH
Key Specifications
Description
Model: RN8104E-RB (Refrigerated Base)
Key features:
- Ventilated refrigerated base system with R290 refrigerant (80g)
- -2 to +8°C temperature range (Tropical Climate rated; climate classification T – tropical)
- Two GN 1/1 drawers
- 100mm deep pan capacity
- Heavy-duty European telescopic drawer guides
- Magnetic drawer gaskets (replaceable without tools)
- 50mm fully foamed CFC free insulation
- 304 stainless steel exterior and interior
- Anti-corrosion treated evaporator
- No condensate drain required
- Condensing unit removable through front of unit for service; access to all parts from front of unit
Overall dimensions (excluding Bench model): 900(W) x 805(D) x 915(H) mm
Electrical:
- Cooktop: 400-415Vac, 50/60Hz, 3P+N+E; power 10.8kW; current L1 22.5A, L2 13A, L3 13A
- Refrigerated base: 220-240Vac, 50Hz, 1P+N+E; 1.8A; 3 pin 10A cordset fitted
Net weight: 130kg (Cabinet Base and Refrigerated Base models)
Specifications
Depth
805 mm
Height
915 mm
Width
900 mm
Power Consumption
10.8kW (cooktop)
Power Source
Electric
Brochures

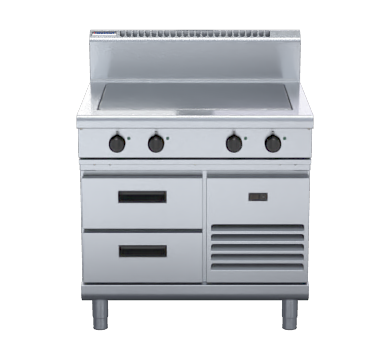

Waldorf 800 Series RN8104E-RB - 900mm Electric Solid Top - Refrigerated Base
Waldorf RN8104E-RB electric solid top cooktop with refrigerated base for chilled drawer storage.
- Maintain -2 to +8°C holding (tropical climate rated) with ventilated R290 system.
- Two GN 1/1 drawers with 100mm deep pan capacity to keep prep ingredients close.
- Smooth drawer operation using heavy-duty European telescopic guides.
- Easy servicing and cleaning: front access to parts, removable condensing unit, and easy clean interior.
- Digital control electronic thermostat with automatic defrost and evaporation of defrost water.
