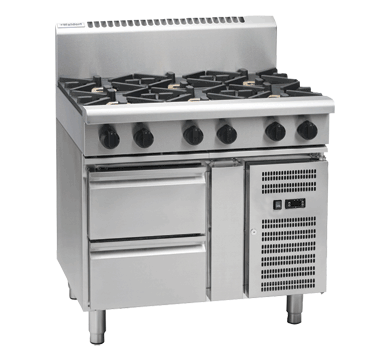

Waldorf 800 Series RN8609G-RB - 900mm Gas Cooktop Refrigerated Base

Key Specifications

Dimensions

900 mmW x 805 mmD x 915 mmH

Description

Model: RN8609G-RB (–RB model = Refrigerated base / Refrigerated Base)

  • Product type: Gas Cooktop (800 Series)
  • Overall dimensions (W x D x H): 900mm x 805mm x 915mm
  • Gas consumption: RN8609G 60 MJ/hr, 16.6kW
  • Electrical: 220-240Vac, 50Hz, 1P+N+E, 1.8A; 3 pin 10A plug cordset fitted
  • Refrigerated base capacity: Two GN 1/1 drawers; 100mm deep pan capacity
  • Temperature range: -2˚ to +8˚C temperature range
  • Refrigerant: R134a (160grams)
  • Plumbing: No condensate drain required
  • Compliance: ISO9001 Quality Management Standard (Cert. No. 6902)

Specifications

Gas Consumption

RN8609G 60 MJ/hr, 16.6kW

Depth

805 mm

Height

915 mm

Width

900 mm

Power Requirement

220-240Vac, 50Hz, 1P+N+E, 1.8A; 3 pin 10A plug cordset fitted

Power Source

Gas

Brochures

Waldorf 800 Series RN8609G-RB - 900mm Gas Cooktop Refrigerated Base

Waldorf

SKU: RN8609G-RB

Waldorf RN8609G-RBgas cooktop from the 800 Series, listed as GAS COOKTOPS 900mm.

  • 900mm widthgas cooktop format for commercial kitchen layouts.
  • Model RN8609G-RBidentification to match the correct unit to your job or replacement needs.
  • Refrigerated basevariant (–RB model) for integrated under-cooktop refrigeration.
  • Key performance and installation details were not supplied in the provided data—confirm requirements before ordering.

Verified supplier details:

  • Cooktop with 900mm griddle on refrigerated base
  • 3 x 20MJ/hr griddle burners
  • Heavy-duty stainless steel finish
  • Flame failure protection on all burners
  • Removable heavy-duty cast iron burners and vitreous enamel pot stands
  • Heavy-duty reinforced control knobs
  • Adjustable feet and 2 additional rollers

Dimensions: W: 900mm D: 805mm H: 1130mm Volume: 1.03m 3 Packed Weight: 245kg

Specification sheet: RN860XG_an.pdf

RRP $18,854.00

BUY FOR

$16,025.90

EX GST

Save $2,828.10 off RRP
