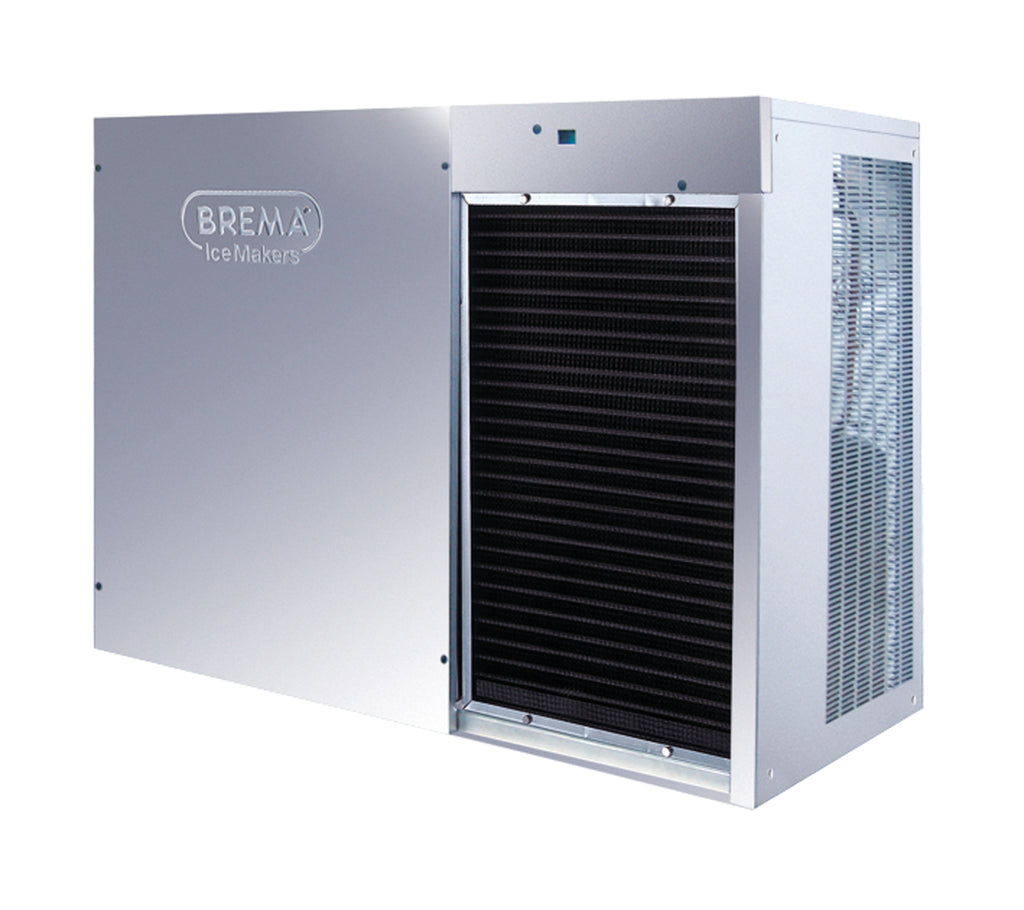

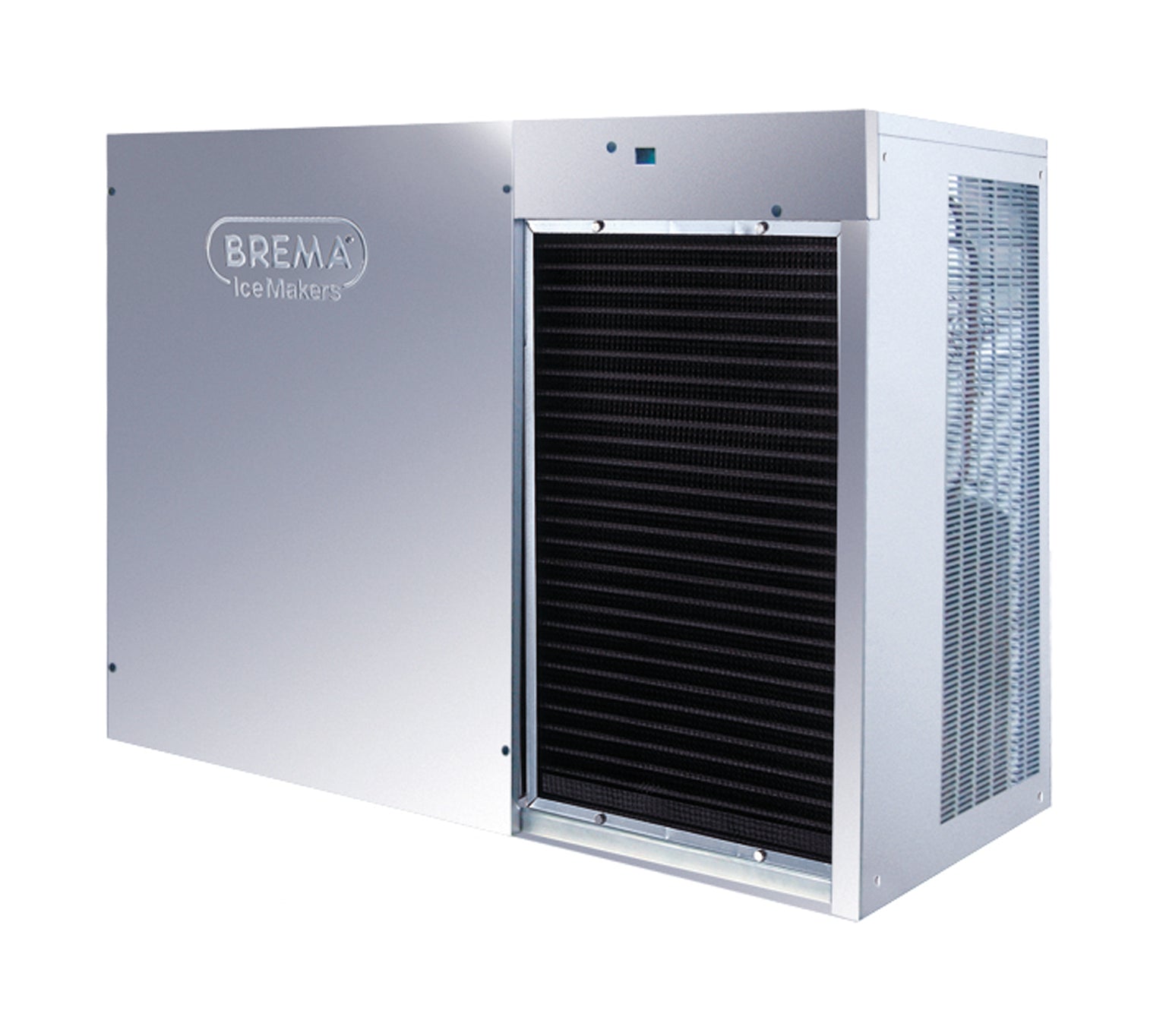

Brema VM1700A Modular Ice Cube Machine 770kg/24h
Roll over image to zoom in Click on image to zoom
Brema VM1700A Modular Ice Cube Machine 770kg/24h

Quick Specifications

Dimensions (mm)
W1250 x D645 x H950
Power Source
Electric
Power Requirement
415V 50Hz three phase (cable without plug)

Details

Model: VM1700A

Modular ice cube head producing pyramid-trunk shaped ice cubes (7g).

  • Production (24h): 770kg (rated at 21°C air and 15°C water)
  • Cooling system: Air
  • Refrigerant: R452A
  • Dimensions (W x D x H): 1250 x 645 x 950 mm
  • Weight: 186kg
  • Power supply: 415V 50Hz three phase (cable without plug)
  • Energy consumption: 4300W
  • Fuse: 32A
  • Connections: 3/4” water inlet; 24mm water outlet
  • Construction: Hospital grade stainless steel outer; stainless steel spray arm; vertical evaporator system; electromechanical operation
  • Standard accessories: Water inlet hose; drainage hose; external water filter; pressure limiting valve
  • Designed to fit on top of Brema’s 350kg storage bin
  • Usable bins: BIN200, BIN240PE, DRB100

Warranty Details

Manufactures warranty period
3 YEARS PARTS & LABOUR

Brochures

Brema VM1700A Modular Ice Cube Machine 770kg/24h

BremaSKU: VM1700A

Brema VM1700A modular ice cube machine delivers fast, compact cubes and is designed to drop ice into a separate Brema storage bin.

  • Produces pyramid-trunk shaped 7g ice cubes that automatically drop into a separate storage bin
  • 770kg production per 24 hours (rated at 21C air and 15C water)
  • Designed to install on top of a 350kg storage bin
  • Vertical evaporator system for fast production, ideal for hotels, fast food outlets, bars and clubs
  • Electromechanical operation for straightforward control
  • Includes water inlet hose, drainage hose, external water filter and pressure limiting valve
