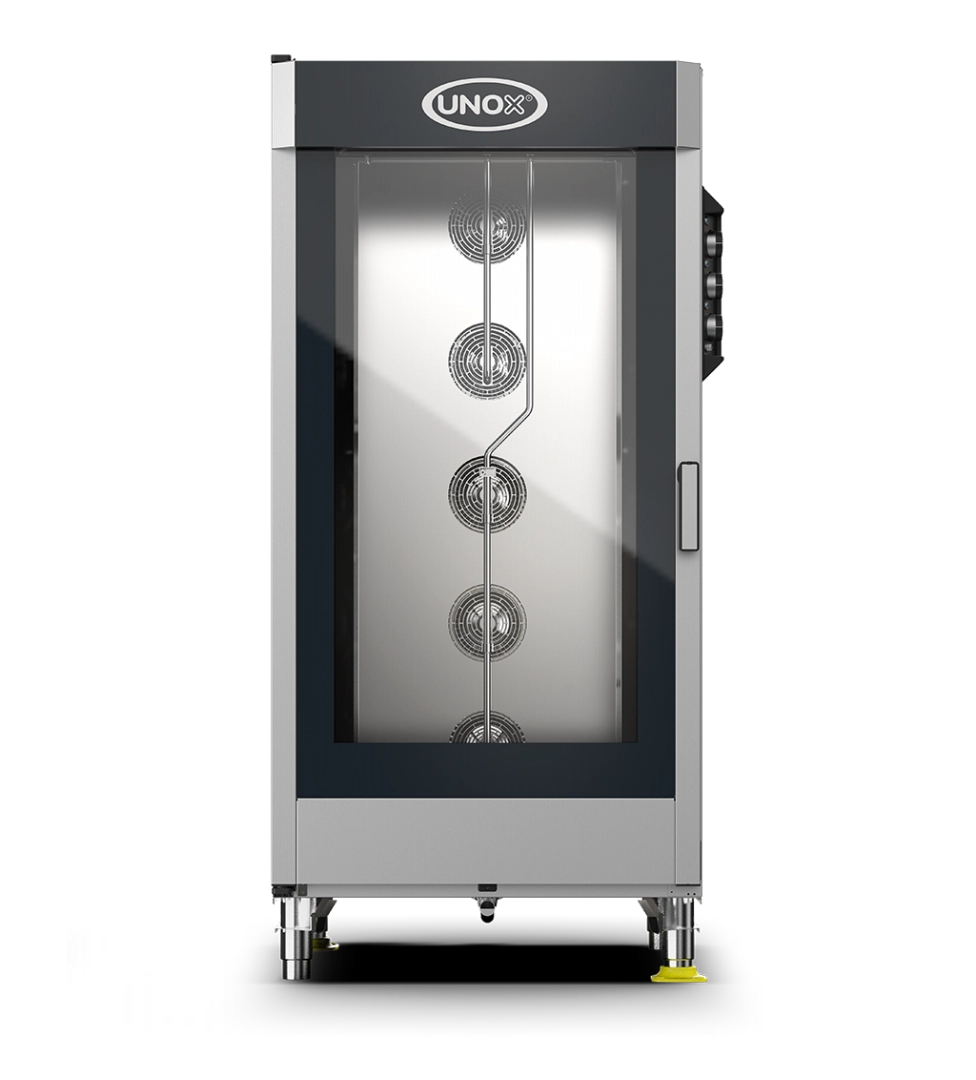

UNOX XV4093 Combi Oven Manual cooking 913mm

Key Specifications

Dimensions

913 mmW x 1237 mmD x 1863 mmH

Description

Model: XV4093 (CHEFLUX™)

Dry air-steam combi oven with analogical control and 304 stainless steel cooking chamber. Time, temperature, steam percentage and 2 fan speeds function.

  • Temperature range: 80 °C – 260 °C
  • Tray capacity: 20 trays GN 2/1 (tray pitch 66 mm)
  • DRY.Plus: rapidly extracts humidity from the cooking chamber
  • STEAM.Plus: creates instant humidity
  • AIR.Plus: multiple fans with reverse gear and 2 speed settings
  • Cooking chamber in high-resistance AISI 304 stainless steel with rounded edges
  • Double glass
  • LED door-embedded cooking chamber lighting
  • Tray supports with anti-tip system

Electrical power supply (STANDARD): 380-415 V, ~3PH+N+PE, 50 / 60 Hz, total power 46.7 kW, max amp draw 72 A, required breaker size 80 A (plug not included).

Overall dimensions (W x D x H): 913 x 1237 x 1863 mm; Net weight: 285 kg.

Specifications

Control Type

Knob

Depth

1237 mm

Height

1863 mm

Width

913 mm

Phase

Three Phase

Power Consumption

Total power 46.7 kW

Power Kw

46.7

Power Requirement

Voltage 380-415 V; Phase ~3PH+N+PE; Frequency 50 / 60 Hz; Connection: Terminal board power supply; Required breaker size 80 A; Power cable requirements 5G x 16 mm^2; Plug NOT INCLUDED.

Power Source

Electric

Gas Consumption

-

Bluetooth Connectivity

Yes

Wifi Connectivity

Yes

Connectivity USB

Yes

Warranty

Manufactured warranty period

12 Months

Warranty Contact

Unox S.p.A. Via Majorana 22 - 35010 Cadoneghe (PD) - Italy - Tel. +39 049 865 7511 - info@unox.com

Brochures

UNOX XV4093 Combi Oven Manual cooking 913mm

UNOX

SKU: XV4093

UNOX CHEFLUX™ XV4093 combi oven designed for manual cooking with convection and humidity control.

  • Cook from 80°C to 260°C to suit a wide range of dishes.
  • Use DRY.Plus to rapidly extract humidity, or STEAM.Plus to create instant humidity.
  • AIR.Plus multiple fans with reverse gear and 2 speed settings for even airflow.
  • Double glass and LED door lighting help you monitor cooking progress.
  • AISI 304 stainless steel chamber with rounded edges plus anti-tip tray supports for easier handling and cleaning.
