Quick Specifications

Dimension WxDxH (mm)
0 x 0 x

Details

Axwood Pass-Through Dishwasher - Hood Type Dishwasher - PTD-601D

  • Easy to use: Easy installation and service
  • User- friendly one-touch system
  • High Performance: Powerful wash pump delivers higher volumes of wash water and ensures faster clean up times.
  • Low running costs: Hi-tech computer controller ensures low water, low energy, and less detergent consumption.
  • Quality: Full stainless steel structure with stainless steel wash & rinse arms.
  • Incoming water temperature 10-60¬∞C
  • Rated currently of air circuit breaker 40A
  • Record the number of washing 9999
  • 60 racks per hour
  • Drain outlet 42mm
  • WaterMark approved

Specifications

  • Net Weight: 104kg
  • Dimensions (WxDxH): 710 x 790 x 1430 ¬± 20 mm
  • Door Entry: 400mm
  • Basket Size: 500 x 500mm
  • Electrical Supply (V/Hz/ph): N?415V AC / 50Hz / 3ph
  • Cycle Length(3wash cycles): 60 / 90 / 120 sec

Wash Pump, Tank and Element

  • Wash Pump: 3-ph:400 L/min, 0.6 Kw
  • Wash Tank Capacity: 27 Litres
  • Wash Tank Heater :3.0 Kw
  • Wash temperature: 60¬∞C to 65¬∞C

Rinse Pump, Tank and Element

  • Rinse Pump: 0.35 Kw
  • Rinse Tank Capacity: 11 Litres
    Rinse Tank Heater: 9Kw
  • Rinse Temperature: 82¬∞C minimum
  • Water Consumption: 2.9 Litres per cycle

Electrical and Water Connections:

  • Electrical Input: 415V / 50Hz / 3ph, 15.71Kw
  • Water Input: 15 ¬∞Cminimum @ 100-400kPa
  • Hot Water Inlet: 3/4‚Äù B.S.P. fitting
  • Drain Outlet:11/2‚Äù B.S.P. gravity fed

Warranty Details

Manufactures warranty period
Flexikitch 3 Months

Brochures

Estimate shipping

Ex Rental

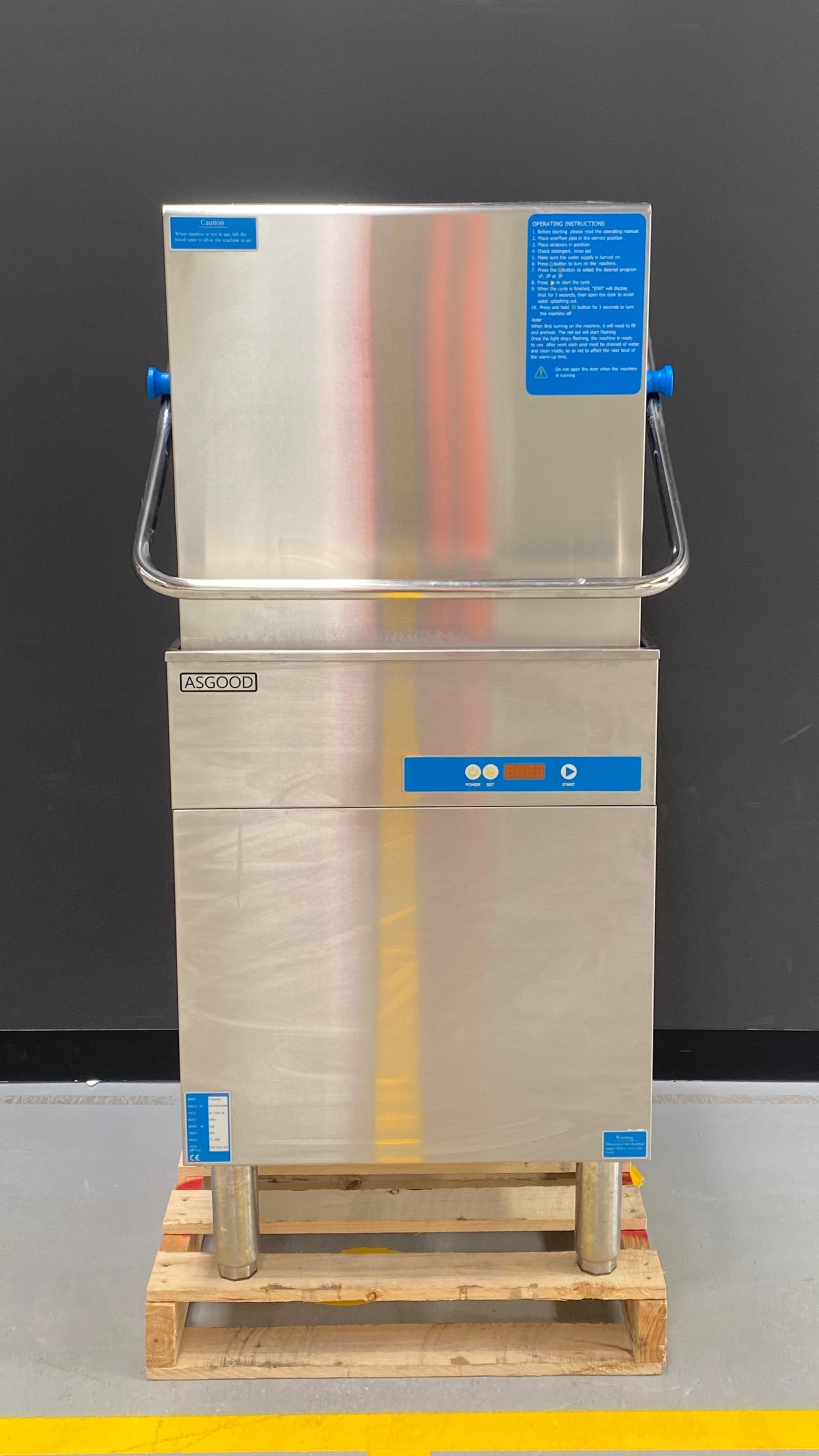

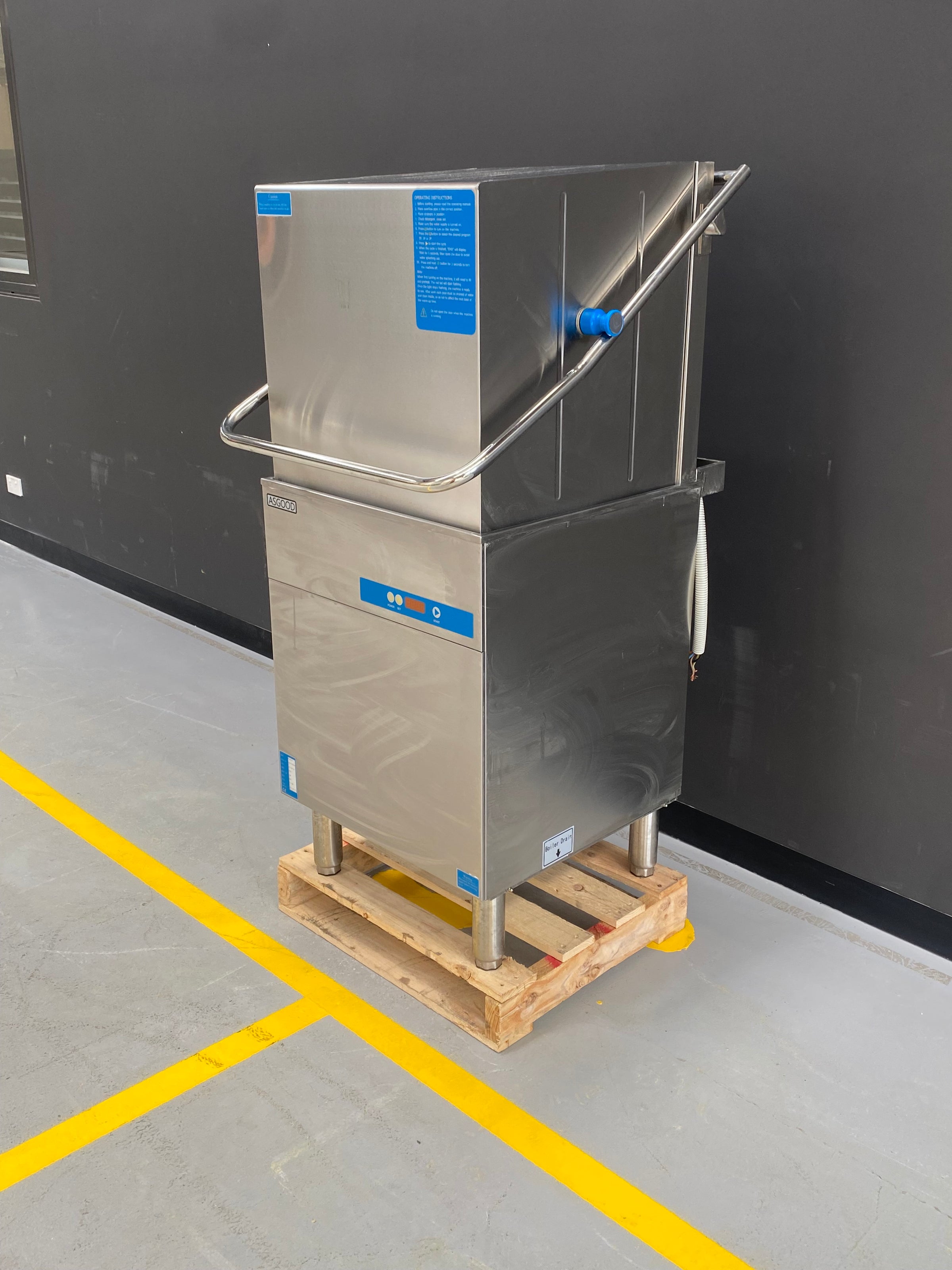

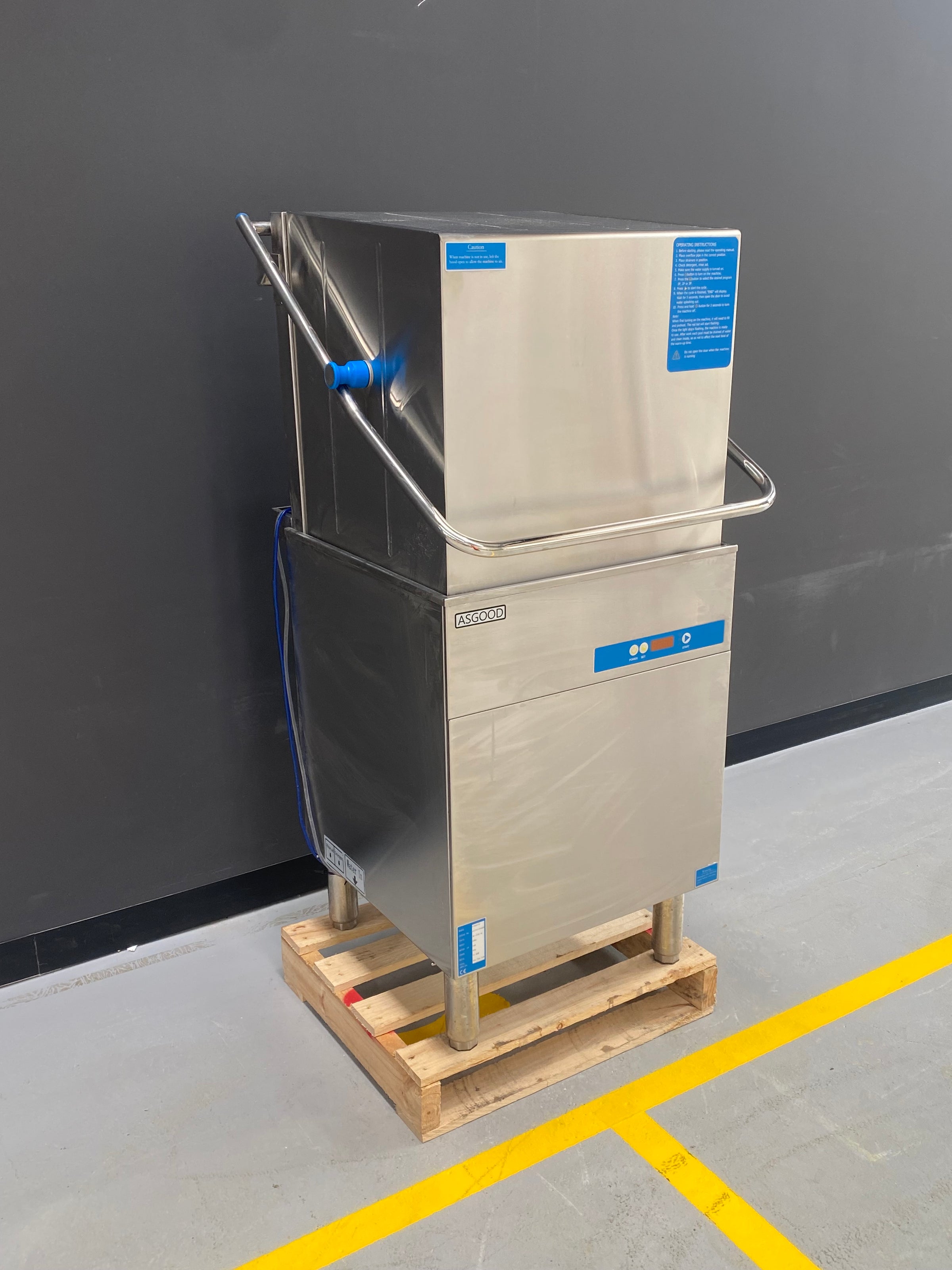

Axwood PTD-601D - Passthrough Dishwasher - Ex Rental

EswoodSKU: PTD-601D SN

History: Ex Rental, 7 Months

Condition: Excellent

  • Net Weight: 104kg
  • Dimensions (WxDxH): 710 x 790 x 1430 ± 20 mm
  • Door Entry: 400mm
  • Basket Size: 500 x 500mm
  • Electrical Supply (V/Hz/ph): N?415V AC / 50Hz / 3ph
  • Cycle Length(3wash cycles): 60 / 90 / 120 sec


Regular price

RRP $6,480.00

Sale price

Buy Outright

$4,800.00 EX GST

SAVE
$1,680.00

SHORT TERM OR RENT TO OWN

Rent for

$8.60 PER DAY

Print as PDF
