Quick Specifications

Dimension WxDxH (mm)
1004 x 607 x 800
Power Source
Electric

Details

Up to 83kg of ice per day
28mm ice cube
Rated to 40C ambient temperature (tropical conditions)
The IM-100CNE-28 is the lowest machine on the market at 800mm high on legs
Suitable for someone with little or no free standing space in their venue. The IM-100CNE-28 isa great under bench unit
New intelligent control circuit dedicated to saving power and water consumption
Micro computer controller controls ice making process to work at peak performance in any conditions
Inbuilt safety features - freeze cycle back up timer, defrost back up, low voltage & high amp protector
New 7 segment operational display panel for ease of use
Unique closed cell water circuit for ulitmate contamination protection
Durable stainless steel exterior
Easily accessible and cleanable air filters reduce costly callouts
Exceptionally hard crystal clear cubes that melt slowly
Auto rinse and flush cycle
3 year parts and labour warranty on entire unit, 5 year (parts only) on compressor & air cooled condenser coil
Cooling Air
Refrigerant R134a
Water temp 5-35C
Water Pressure 70-800 kPa
Ice Production per Cycle 1.15kg/190 pcs
Freeze Cycle 17 mins
Max Storage Capacity - 38 kg
Bin Control 23kg

Warranty Details

Manufactures warranty period
3 Years Parts And Labour On The Entire Unit
5 Years Parts And Labour On The Evaporator
5 Years (Parts Only) On Compressor And Air Cooled Condenser Coil
Onsite or back to base warranty
Onsite Warranty

Brochures

Estimate shipping

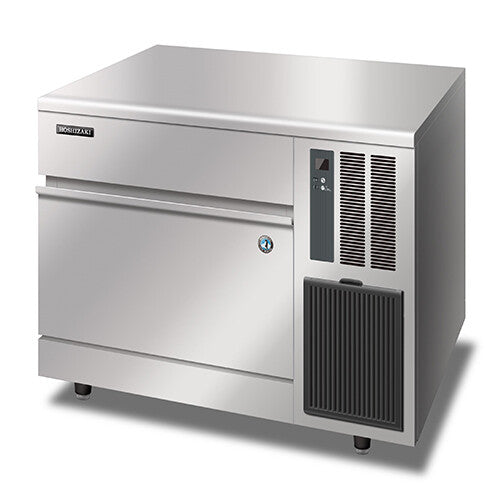

HOSHIZAKI: Cube Ice Machine IM series -IM-100CNE-28

HoshizakiSKU: IM-100CNE-28

Power: 10 A, 220-240V/ 50Hz
Ice Production per 24 Hours:
Air temp: 21C Water temp: 15C 85kg
Air temp: 32C Water temp: 21C 73kg


Regular price

RRP $7,857.00

Sale price

Buy Outright

$4,969.55 EX GST

SAVE
$2,887.45

Print as PDF

We make all reasonable efforts to ensure the accuracy of our website content and pricing, however from time to time this may vary and is subject to change.
