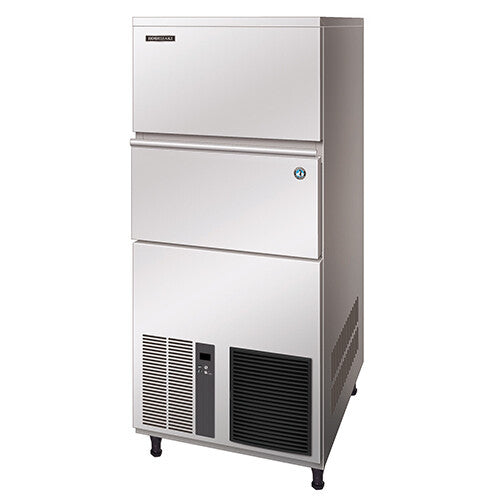

HOSHIZAKI: Cube Ice Machine IM series - IM-240NE-28

HoshizakiSKU: IM-240NE-28

Buy Outright:
Sale price$7,514.73 Regular price$11,881.00
$94.58per week EX-GST Start Application
Print as PDF

Key Specification

Dimensions: 704 x 665 x 1580 mm

Power Requirements: Not specified

Quick Description

Power: 10 A, 220-240V/ 50Hz
Ice Production per 24 Hours:
Air temp: 10C Water temp: 10C 230kg
Air temp: 21C Water temp: 15C 210kg
Air temp: 32C Water temp: 21C 195kg

More Information

Up to 230kg of ice per day
Rated to 40C ambient temperature (tropical conditions)
New intelligent control circuit dedicated to saving power and water consumption
Micro computer controller controls ice making process to work at peak performance in any conditions
Inbuilt safety features - freeze cycle back up timer, defrost back up, low voltage & high amp protector
New 7 segment operational display panel for ease of use
Unique closed cell water circuit for ulitmate contamination protection
Durable stainless steel exterior
Easily accessible and cleanable air filters reduce costly callouts
Exceptionally hard crystal clear cubes that melt slowly
Auto rinse and flush cycle
3 year parts and labour warranty on entire unit, 5 year (parts only) on compressor & air cooled condenser coil
Cooling Air
Refrigerant R404a
Water temp 5-35C
Water Pressure 50-800 kPa
Ice Production per Cycle 3.2kg/140 pcs
Freeze Cycle 20 mins
Max Storage Capacity - 110 kg
Bin Control 80kg

Estimate shipping

Quick Specifications

Dimension WxDxH (mm)
704x665x1580

Warranty

Extended warranty available
No
Manufactures warranty period
3 Years Parts And Labour On The Entire Unit
5 Years Parts And Labour On The Evaporator
5 Years (Parts Only) On Compressor And Air Cooled Condenser Coil
Onsite or back to base warranty
Onsite Warranty
Dimension WxDxH (mm)
704x665x1580

Product Video

Brochures

We make all reasonable efforts to ensure the accuracy of our website content and pricing, however from time to time this may vary and is subject to change.
